Knowles’ DSM supercapacitor modules use EDLC cells in series to expand energy storage capacity across a broader voltage range. Their instant charge and discharge capabilities outperform batteries, but without the shipping restrictions, thermal runaway risks, or much shorter lifespans associated with lithium-ion technology.
DSM supercapacitor modules, shown in Figure 1, can be used in place of, or in parallel with batteries to extend system life and performance.

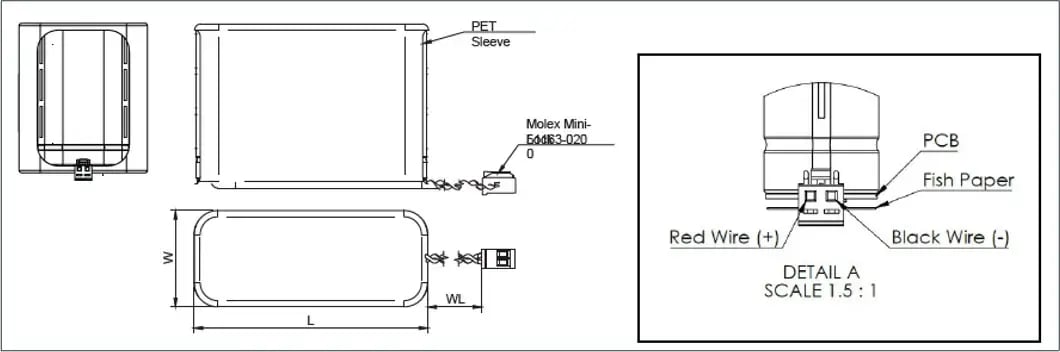

Figure 1: Mechanical drawing of the 60V DSM supercapacitor module, showing dimensions, Molex Mini-Lock connector interface, and wiring details for positive (red) and negative (black) leads.
Knowles is expanding the DSM series with the addition of a 60V/18amp option, providing engineers with greater design flexibility. The DSM series is designed for fast, safe integration into new or existing systems. Each module features:
- Voltage options from 9Vdc to 60Vdc and capacitance values from 0.075F to 36.6F
- Integrated passive cell balancing to ensure uniform cell voltage
- Cable assemblies with Molex Mini-Lock connectors, a plug-and-play solution for rapid prototyping and production deployment
- Wide operating temperature range from -40°C to +65°C (extended to +85°C at derated voltages).
- RoHS and REACH Compliance with UL 810A recognized cells
- Low equivalent series resistance (ESR) and high current capability in pulse power and demanding load applications
- Long lifecycle of 500,000+ charge/discharge cycles
Higher voltage DSM supercapacitor modules enable engineers to meet power requirements without the complex series wiring of multiple lower-voltage units. This reduces design time, minimizes connection points, and improves overall reliability. The 60V models are particularly suited for 48V bus applications.
Applications include, but are not limited to:
- Factory automation and robotics
- UPS systems and emergency lighting
- AGVs, personal EVs, and material handling equipment
- Medical systems
- Valve actuators and control systems
- Pulsed power applications (e.g., gates, doors, HVAC)
- GPS, telematics, and tracking systems
- Solar lighting and energy harvesting/storage solutions
With the new 60V option, the DSM series continues to offer engineers a straightforward, off-the-shelf solution for both high-energy and high-power demands. Explore the DSM datasheet for complete voltage, capacitance, and current specifications.
