As solar adoption accelerates worldwide, inverter technology must also evolve to deliver greater efficiency, power density, and connectivity. Modern residential inverters are now required to manage energy from solar panels, battery storage, and the grid all while meeting stricter global safety standards. In this complex environment, safety capacitors play a crucial role in protecting users and ensuring reliable, interference-free operation.
This blog explores the current trends and challenges in the solar power inverter market, particularly when it comes to electromagnetic interference filtering, and how those are impacting safety capacitor selection.
Solar Power Inverter Market Trends
The solar power inverter market is currently experiencing robust growth and rapid technological transformation. Driven by advances in inverter technology, residential and commercial solar adoption, and integration with smart grid and energy management systems, the global photovoltaic (PV) inverters market, which was valued at US $12.1 billion in 2024, is expected to reach US $19.8 billion by 2030 (Source).
Let’s look more closely at the following trends that are reshaping inverter design:
- Higher power and voltage requirements: To improve efficiency and reduce transmission losses, solar inverters are evolving toward higher maximum input and output voltages. For example, string inverters now commonly operate at DC voltages up to 1100V, while commercial and industrial inverters are scaling to accommodate 110 kW and above.
- Increased Switching Frequencies: To improve efficiency and reduce the size of magnetic components, inverter manufacturers are adopting higher switching frequencies, often exceeding 10-20 kHz and moving into the 100 kHz+ range with wide-bandgap (WBG) semiconductors like silicon carbide (SiC) and gallium nitride (GaN).
- Hybridization of inverters: Modern inverters are transitioning from simple DC-to-AC conversion devices to intelligent energy management systems. This means hybrid inverters can now manage solar input, battery storage, and grid interaction simultaneously.
- Smart grid integration: Smart inverters now provide advanced grid support functions including voltage regulation, frequency control, fault ride-through capabilities, and reactive power compensation.
- Distributed and modular architectures: These configurations integrate multiple inverters to build solar arrays, offering improved efficiency, reliability, and flexibility compared to centralized architectures.

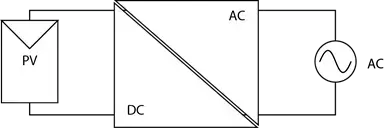

Figure 1. A simplified view of power conversion in a solar system that converts DC generated by a panel into AC that can be fed into the grid. As systems evolve the topology choices multiply.
In short, today’s inverters are evolving to deliver unprecedented performance. But with this shift comes a range of new challenges for managing EMI safely and effectively.
EMI Filtering Challenges for Solar Inverters
The evolving solar inverter landscape, which includes higher voltages, faster switching, and hybrid architectures, makes EMI filtering increasingly complex. Engineers must consider multiple interacting factors that impact EMI, including:
- Increased stress at higher voltages: Increased DC link voltages place added electrical and thermal stress on capacitors in EMI filtering circuits.
- Faster switching transients: WBG devices improve power density but generate high-frequency EMI that’s harder to suppress.
- Multiple modes of interference: Differential-mode noise occurs between lines, while common-mode noise travels through parasitic capacitances to ground, AND both require tailored filter design.
- Hybrid system coupling: This multi-functional operation introduces additional switching events and complex power flow patterns that create more diverse EMI signatures requiring robust filtering
- Advanced control electronics: Smart inverter algorithms switch rapidly to maintain grid stability, adding further EMI sources.
- Distributed architectures: Interconnecting multiple inverters can create voltage fluctuations and elevated electrical noise across the array.
- Long lifetime demands: Inverters are expected to operate reliably for 20 to 25 years, requiring capacitors that maintain performance over decades of stress.
- Strict global standards: Compliance with standards such as IEC 61000, CISPR 11, and IEC 62109-1 requires filters that perform reliably in all environmental conditions.
Addressing these challenges starts with choosing safety capacitors that can withstand high voltages, manage high-frequency EMI, and maintain reliable performance across demanding conditions.

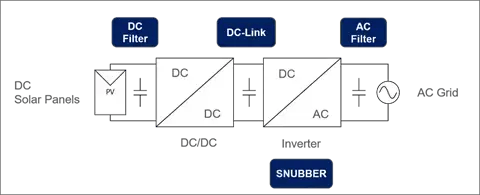

Figure 2. Safety capacitors play key roles in both the DC Filter and AC Filter sections.
Selecting Safety Capacitors for EMI Filter Circuits
Safety capacitors, classified as Class X (line-to-line) or Class Y (line-to-ground). are essential for performing EMI filtering. These passive components are engineered to mitigate the risks associated with transient voltages and electrical interference, helping protect both users and equipment from hazards, even in the event of component failure.
When designing EMI filters for solar inverters, engineers should prioritize:
- Voltage rating and surge withstand capabilities: Safety capacitors must withstand continuous rated voltages and transient over voltages caused by events such as grid disturbances or lightning strikes.
- Moisture resistance and temperature stability: Outdoor use requires capacitors that pass biased humidity testing (85°C/85% RH for 1,000 hours) with minimal degradation and can maintain stable capacitance and low equivalent series resistance (ESR) from −40 °C to +105 °C.
- Ripple current performance: High ripple currents demand low ESR to minimize self-heating and extend capacitor life.
- Self-Healing and Fail-Safe Operation: Metallized film capacitors use controlled self-healing to clear faults safely. Additionally, failure modes must be inherently safe with Y capacitors failing open-circuit to prevent shock hazards and X capacitors failing short to trigger protective fuses.
Together, these characteristics ensure safety capacitors maintain filtering effectiveness and safety compliance throughout the inverter’s service life.
Supporting All Your Solar Inverter Safety Capacitor Needs
From compact MLCCs to high-voltage film capacitors, Knowles’ safety capacitors are engineered for reliably in a demanding inverter environment. Designed and tested to international standards, our safety capacitors deliver:
- Exceptional voltage withstand and surge performance
- High moisture and temperature endurance
- Stable electrical behavior across wide frequency ranges
- Certified safety compliance for global markets
As solar inverters evolve, Knowles will continue to deliver the safety and performance that engineers trust to power the next generation of renewable energy systems.
Explore our comprehensive safety capacitor portfolio or learn more about safety capacitor selection by downloading The Electrical Engineer’s Guide to Safety Capacitors.
