Semiconductor manufacturing is one of the most advanced industrial processes on Earth, requiring precise control of energy and materials at the nanometer scale. Behind that precision lies an invisible backbone: the power electronics systems that deliver, shape, and regulate every watt of energy that drives chip production.
The Power Behind Precision
From smartphones to data centers, the performance of modern electronics starts with the wafer. Extreme ultraviolet (EUV) lithography, the latest frontier in patterning, illustrates just how energy-intensive chipmaking has become. A single EUV lithography tool can consume between 1.17 and 1.4 MW of electrical power when running, yet only a fraction of that energy becomes useful EUV light. The rest of the energy supports a symphony of high-voltage, high-frequency, and high-current systems that keep the process stable, clean, and reproducible.
FEOL and BEOL: Two Halves of the Silicon Story
Semiconductor fabrication is divided into two main phases. The front end of line (FEOL) builds the active components such as the transistors, capacitors, and resistors, directly on the silicon wafer. The back end of line (BEOL) process adds the intricate network of metal interconnect layers that link transistors together, forming the circuits, and finishes the wafer with insulation, passivation, and protective coatings before testing and packaging.
In this blog, we will focus on the processes required during the FEOL phase. This includes four basic unit operations, deposition, patterning, doping, and heat treatment, that are repeated hundreds of times to form functional semiconductor layers. Each step depends on specialized power electronic systems that deliver energy with extreme control and reliability. Let’s explore how those systems work in more detail along with the vital role capacitors play in each.
Power Electronics in FEOL Processes
At the front end of semiconductor manufacturing, every process used to build active devices on silicon relies on precise, reliable delivery of electrical energy. Power electronics provide the finely controlled voltages, currents, and frequencies that make nanometer-scale fabrication possible, powering everything from plasma systems and lasers to ion implanters. The following systems, RF power generation, impedance matching networks, high-power CO₂ lasers, and high-voltage pulsed power, form the backbone of FEOL operations. Within these systems, capacitors play a crucial role in storing, filtering, and shaping that energy to ensure clean, stable power.
RF Power Generation
RF power generation systems are fundamental to multiple FEOL processes including plasma-enhanced chemical vapor deposition (PECVD), plasma etching, and physical vapor deposition (PVD). Across these processes, RF power generation systems need to deliver energy at power levels from 1.25 kW to 10 kW across frequencies ranging from 200 kHz to 60 MHz for these systems to perform critical functions such as:
- Creating and sustaining plasma for selective thin-film deposition
- Performing nanometer-scale etching
- Enabling sputtering of insulating and semiconducting materials
To do this, modern solid-state RF systems rely on precisely tuned LC tank circuits that store and exchange energy between inductors and capacitors at resonant frequencies while minimizing power loss. In Class E power amplifiers, capacitors are key to efficiency. The shunt capacitor (C1) shapes the transistor’s drain waveform to enable zero-voltage switching (ZVS), while the series capacitor (C2) couples the load and tunes the resonant network for clean, efficient RF output.

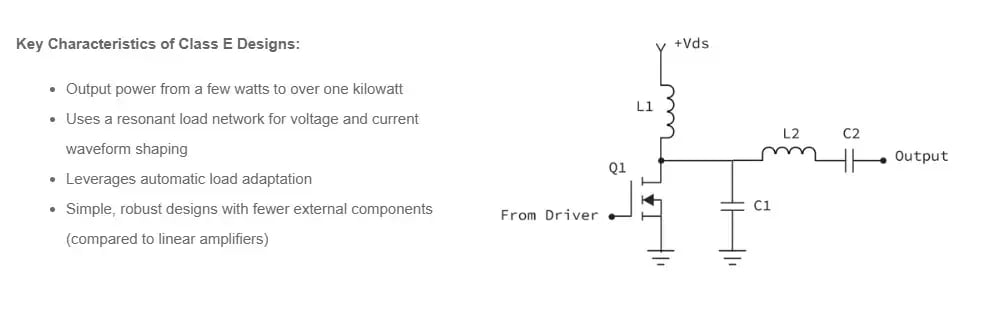

Figure 1: Simplified Class E amplifier
Supporting these stages are DC link and filter capacitors that stabilize power amplifier rails, and RF-grade resonant capacitors that maintain spectral purity and signal stability. For these use cases, high-Q multilayer ceramic capacitors (MLCCs) with ultra-low equivalent series resistance (ESR) are essential for reducing heat generation and maintaining precise frequency control.
Impedance Matching Networks
Impedance matching networks are critical in all RF-driven FEOL processes including PECVD, etching, and PVD sputtering. This is because plasma impedance varies dramatically during processing, changing from very low to very high impedance within seconds as deposition chemistry and plasma density evolve. Matching networks contain tunable inductors and capacitors that dynamically adjust circuit impedance, minimizing reflected power and maintaining stable plasma conditions.
Vacuum variable capacitors (VVCs) are central to this performance, offering the high-voltage tolerance (5–7 kV) and precision required for rapid, automated tuning. The latest electronically variable capacitor (EVC) technologies push these adjustments to microsecond speeds, vital for today’s pulsed RF plasma processes.
High-Power CO₂ Lasers
At the cutting edge of patterning, EUV lithography depends on multi-kilowatt CO₂ laser amplifier chains that strike molten tin droplets 50,000 times per second to generate EUV light at a 13.5 nm wavelength. EUV patterning reduces multi-patterning complexity and enables features below 10 nm, but it demands extraordinary electrical power and cooling. Therefore, high-voltage pulse power systems that energize CO₂ laser discharge tubes require energy storage capacitors that can deliver the intense energy pulses needed for laser excitation.
High-Voltage Pulsed Power Systems for Ion Implantation
During ion implantation, dopant atoms are accelerated into silicon using high-voltage pulsed power systems. These circuits employ energy-storage capacitors and inductive pulse-forming networks (PFNs) to deliver well-shaped voltage pulses (up to 200 kV) with less than 0.03% ripple. Pulse-forming and snubber capacitors protect switching devices and maintain beam uniformity, ensuring consistent electrical characteristics across every transistor on the wafer.
Capacitors: The Quiet Enablers of the Power Chain
Across these systems, capacitors play indispensable roles to store and release energy, stabilize voltages, filter harmonics, and tune resonant frequencies. Here is a summary of the many crucial capacitor functions discussed in this blog:
- For RF amplifiers, high-Q MLCCs minimize power loss and help maintain spectral purity
- In matching networks, rugged VVCs tune plasma impedance in real time for stable process control
- Pulse-forming capacitors in ion implanters shape high-voltage waveforms with exceptional precision
- Snubber and energy-storage capacitors in CO₂ laser drivers ensure rapid, stable energy delivery for EUV light generation
Together, these components enable precise control of energy at the atomic level, and Knowles capacitors are engineered specifically for these demanding environments. With a combination of ultra-low ESR, high stability, and proven reliability, our capacitors are built to perform in the most power-intensive semiconductor applications.
Learn more about our extensive range of high-performance capacitors.
