Variable Frequency Drives (VFDs) are an essential part of modern motor controller design, enabling precise regulation of AC motor speed and torque. They operate by converting fixed-frequency AC power from the grid into DC, then inverting it back into AC at the desired frequency and voltage.
This control approach, shown in Figure 1, improves energy efficiency and reduces mechanical stress on equipment, extending the lifetime of motors and the machinery they power.

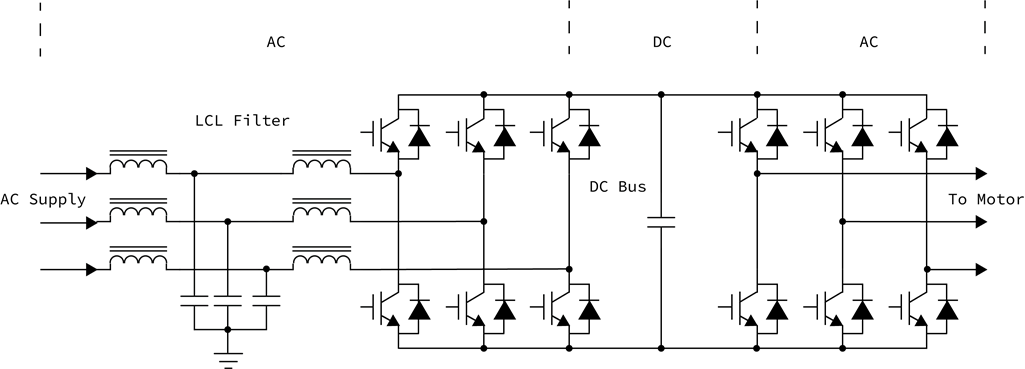

Figure 1: Block diagram of a Variable Frequency Drive (VFD) showing the AC-to-DC rectification stage, DC bus, and DC-to-AC inverter stage with an LCL filter for power conditioning.
Inside every VFD, capacitors perform crucial functions that directly impact overall performance and reliability. The largest and most visible are the DC bus capacitors, which smooth the rectified DC voltage. These capacitors act as both energy storage and voltage stabilizers, ensuring that the inverter has a clean DC supply to produce precise, stable AC power for the motor.
On the input side, filter capacitors help the VFD coexist with the rest of the electrical system. Working with inductors in electromagnetic interference (EMI) filter circuits, these components suppress high-frequency electrical noise generated by the drive. This prevents interference with other equipment and allows the VFD to meet strict compliance requirements.
Within the inverter, snubber capacitors protect sensitive switching devices such as IGBTs or MOSFETs from transient voltage spikes. These capacitors absorb the energy of rapid switching events to safeguard components from overvoltage stress and reduce EMI.
Power Electronics Advances in VFD Design
Advances in power electronics are reshaping how we design VFDs. Wide bandgap semiconductors (e.g., SiC and GaN) are becoming more common, enabling higher efficiency and faster switching speeds. At the same time, tighter global energy efficiency standards and increasing demand for application-specific customization are driving innovation in both VFDs and the components that support them.
Capacitor selection directly influences the stability, efficiency, and lifespan of a VFD. Engineers must balance ripple current handling, capacitance sizing, and equivalent series resistance (ESR) to ensure stable and efficient operation. Thermal management and accurate lifetime modeling are equally critical for a system under sustained electrical and thermal stress. In high-voltage applications, series connection adds further complexity, requiring careful balancing to avoid uneven voltage distribution across multiple capacitors.
Through our Cornell Dubilier brand, Knowles provides the expertise and component selection tools engineers need to address these challenges with confidence. Our portfolio includes both aluminum electrolytic and DC film capacitors with high ripple current ratings, superior thermal performance, and high-voltage options that often eliminate the need for series connection. Our web-based modeling tool allows designers to input real operating conditions and predict impedance, thermal stress, and lifetime.
Our detailed selection guide and accompanying application note include practical rules and examples for sizing and selecting capacitors in typical converter/inverter applications. For unique design scenarios, our engineering support team works directly with customers to model and optimize solutions.
